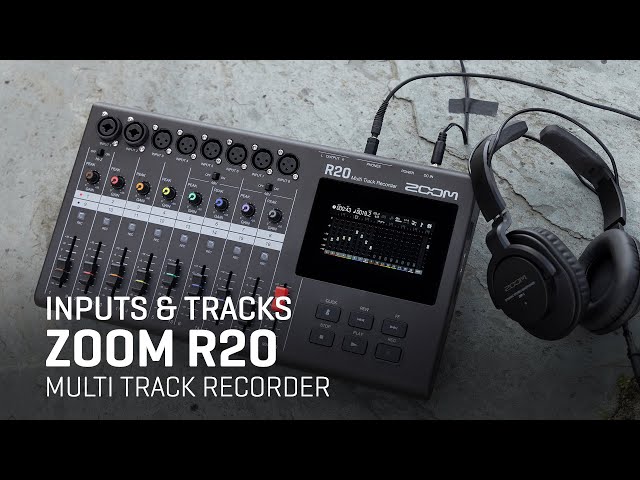

1Zoom R20 Multi Track Recorder
Item No. : 198461
| Number of channels : | 16 |
| Nombre de pistes : | 8 |
| Sampling frequency : | 44.1 kHz |
The specialist's opinion
The Zoom R20 is arguably the easiest portable digital recorder to use.
With its 8 XLR inputs including 2 XLR / JACK combos and its touch screen, you can record multitrack and compose intuitively.
The interface is very similar to computer music software, the creation of loops and automation is done in no time. You will have inside, drum rhythms, a metronome, the possibility of recording MIDI. Files can be saved to an SD card up to 1TB. You can also use the R20 as an audio interface.
Specification
| Générale | |
|---|---|
| Number of channels : | 16 |
| Nombre de pistes : | 8 |
| Microphone inputs : | 8 |
| Sampling frequency : | 44.1 kHz |
| Mono / line inputs : | 2 |
| Number of simultaneous recording channels : | 8 |
| Effects : | Comp / Limiter / Gate + 10 spatial effects |
| Tuner : | Chromatique/Guitare/Basse/Open A/Open D/Open E/Open G/DADGAD |
| Metronome : | 3/4, 4/4, 6/8 |
| Entrées / Sorties | |
| Entrées : | 2 XLR/TRS combo jacks, 6 XLR |
| Générale | |
| Phantom power : | yes |
| Entrées / Sorties | |
| Outputs : | 2 balanced TRS jacks |
| Input impedance : | XLR: 3.9 kΩ TRS: 5.3 kΩ / 1 MΩ (Hi-Z on, Input 1 only) |
| Output impedance : | Master : 200 Ω / Phones : 33 Ω |
| Headphone output : | 1 stereo jack |
| Générale | |
| Headphone output : | 1 |
| Display | |
| Ecran : | 10.9cm color touchscreen LCD |
| Générale | |
| General release : | Jack |
| Power supply | |
| Power supply : | AC adapter (ZOOM ZAD-1220): 12 V/2.0 A |
| Dimensions and weight | |
| Length : | 378 mm |
| Width : | 206 mm |
| Height : | 58 mm |
| Weight : | 1.33 kg |
